Descale
Features

With over 60 years of service in the field, Elwood’s product line sets the standard by which our competitors follow. Water hydraulics is our specialty.

Our Spindle Style Descale Valve is specifically designed for the Descale environment. Widely used in the steel processing industry worldwide, providing unparalleled service and shock control. Available in normal open or closed positions, with a variety of sizes and mounting configurations, required to provide our customers with the complete solution.

FUNCTION
The main valve consists of a counter balanced spindle controlled by an internal hydraulic cylinder acting on the top of the spindle to generate the force required to close the valve, and a pneumatic air cylinder located on the bottom of the valve that is actuated to open the valve. The pneumatic cylinder’s position (open or closed) is controlled by an electrically-operated pneumatic solenoid, supplying air to the pneumatic cylinder. The opening and closing speed of the valve can be controlled by regulating the air flow entering or exiting the pneumatic cylinder.

FEATURES
• Designed to operate with low viscosity fluids and raw water • Removable Stainless Steel internal parts
• Excellent corrosion-resistance • V-Notch Shock Technology with Velocity Control Ports
• Shield Seat Design • Reversible Soft Composition Disc
• Inverse Flow Technology

V-NOTCH SHOCK TECHNOLOGY
Uses specially-designed orifices machined into seat and precision contours on the spindle assembly to control flow and reduce
hydraulic shock in the system.

1
2
3



As the valve is opened, fluid flows past the disc and is discharged through the special V-Notch orifices machined into the annular area of the seat located above the sealing area of the disc. (1) As the valve closes, the spindle reduces the V-Notch area, rapidly at first (2) the at a decreasing rate for each increment of spindle movement, until, (3) at the very peak of the V-Notch, flow is stopped before the disc is seated. The fluid is brought to rest gradually, eliminating harmful shock or water hammering.

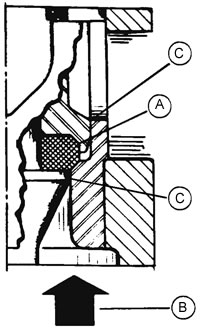

Cross-sectional view through seat area (closed position)


A. Reversible Composition Disc
The soft composition disc is designed to provide reliable maintenance-free drop tight
sealing around scratches or scored surfaces between the disc and seat. Damaged discs are easily reversed to provide extended seal life, reducing long term maintenance costs.

B. Inverse Flow Technology
Inverse flow concept uses the direction of fluid flow through that valve in conjunction with the operating direction of the valves spindle. The flow of the fluid through the valve is directly opposing the movement of the valve spindle as it closes. This prevents the spindle from slamming into the valve seat as the spindle approaches the fully-closed position. If fluid flow is in the same direction as the spindle movement, a large imbalance would be created, causing the spindle to slam into the valve seat.

C. Shield Seat Design
Using the different contours on the spindle assembly and the bore diameter in the seat, creates a precision metering system to control the effects of high velocities. When the spindle begins to open, the gap between the seat and the disc accelerates faster than the gap between the spindle and the bores, minimizing the effects of high velocity fluid acting on the seat and disc, providing longer valve life.

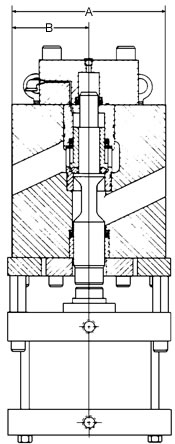

3600 PSI (250 Bar) Series

Normally Closed
(Hydraulically Loaded)



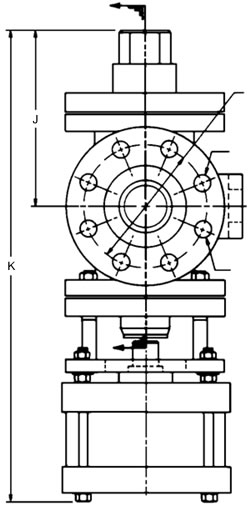

  DIMIENSIONAL INFORMATION 1500 LB. ASA B16.5 FLANGES
SIZE
MODEL
CV
FACTOR
A
B
C
D
E
BOLT
CIRCLE
BOLT
DIAMETER
#
OF
BOLTS
J
K
IN
mm
IN
mm
IN
mm
IN
mm
IN
mm
IN
mm
IN
mm
IN
mm
IN
mm
2
4104A
40
10.12
257
5.06
129
8.50
216
6.50
165
3.38
86
1.50
38
1.00
25
8
7.62
194
22.12
562
2 1/2
4105A
40
10.12
257
5.06
129
9.62
244
7.50
191
4.12
105
1.62
41
1.12
28
8
7.62
194
22.12
562
3
4106A
87
15.00
381
7.50
191
10.50
267
5.00
127
1.88
48
8.00
203
1.25
32
8
9.25
235
25.75
654
4
4108A
175
18.50
470
9.25
235
12.25
311
6.18
157
2.12
54
9.50
241
1.38
35
8
16.00
406
37.50
953
6
4110A
330
24.50
622
12.25
311
15.50
394
8.50
216
3.25
83
12.50
318
1.50
38
12
18.50
470
44.75
1137
8
4112A
605
33.50
851
16.75
425
19.00
483
10.62
270
3.62
92
15.50
394
1.75
44
12
21.25
540
53.25
1353

For additional configurations or flange sizes consult factory.
Above dimensions are for reference only.
All dimensions are subject to change.

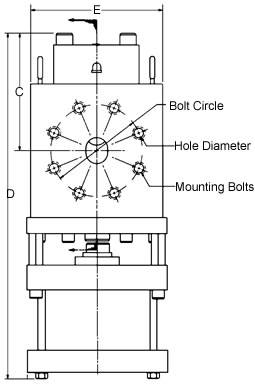

6000 PSI (413 Bar) Series

Normally Closed
(Hydraulically Loaded)



  DIMIENSIONAL INFORMATION 2500 LB. ASA B16.5 FLANGES
SIZE MODEL CV
FACTOR
A B C D E BOLT
CIRCLE
MOUNTING
BOLTS
NUMBER
OF BOLTS
IN mm IN mm IN mm IN mm IN mm IN mm IN
2 1/2 4105A 40 10.38 264 5.19 132 8.68 220 24.68 627 8.00 203 7.75 197 1 1/8" - 7 UNC 8
3 4106A 87 12.00 305 6.00 152 10.50 267 29.32 745 12.00 305 1.62 41 1 1/8" - 7 UNC 8
4 4108A 175 20.25 514 10.12 257 14.75 374 37.62 955 14.00 355 10.75 273 1 1/2" - 8 UNC 8
6 4110A 330 27.38 695 13.69 347 16.25 412 40.75 1034 19.75 501 14.50 368 2" - 4.5 UN 8
8 4112A 605 33.50 850 16.75 425 21.25 539 31.75 806 22.00 558 17.25 438 2" - 4.5 UN 12

For additional configurations or flange sizes consult factory.
Above dimensions are for reference only.
All dimensions are subject to change.

Technical Data
Minimum Operating Pressure 40 PSI (3 bar)
(Consult factory for pressures below 40 PSI)
Hydraulic Media HWCF, 97/3 Soluble Oil in Water,
Synthetics, Mineral Oils and Kerosene
Viscosity Range at 100º F (38º C) 20 SSU (1.2 Cst.) to 1800 SSU (385 Cst.)
Maximum Pressure Rating 2 Ranges
3600 PSI (248 bar),
6000 PSI (414 bar)
Fluid Temperature Range HWFC 35º to 150º F (2º to 65º C)
Mineral Oil 5º to 150º F (-15º to 65º C)
Recommended Filtration Minimum - 149 Micron (100 mesh)
Air Pressure Minimum - 60 PSI (4 bar)
Maximum - 120 PSI (8 bar)
Valve Sizing

Valve sizing and selection requires consideration in two (2) areas: Pipe Velocity and Pressure Drop through the valve.

PIPE VELOCITY

Allowable maximum pipe velocity is based on various system considerations and fluid velocity and resulting pressure
drop. Generally, the following flow rates are acceptable parameters for most piping systems:

• for short-to-medium length runs, 26 ft/sec (8 m/sec.), and a maximum of 30 ft/sec. (9 m/sec.)
• for long piping runs, 20 ft/sec. (6 m/sec.)

PRESSURE DROP THROUGH THE VALVE

For peak performance and extended valve life pressure drop through the valve should be a consideration. Use the
manufacturer's stated Cv Factor as an effective method in calculating a valve's pressure drop.

Flow and Capacity Curves
MODELS:
— 4104A
— 4106A
— 4108A
FLOW RATES:
2 - 20 ft/sec
3 - 30 ft/sec
4 - 40 ft/sec
MODELS:
— 4110A
— 4112A

FLOW RATES:
2 - 20 ft/sec
3 - 30 ft/sec
4 - 40 ft/sec
